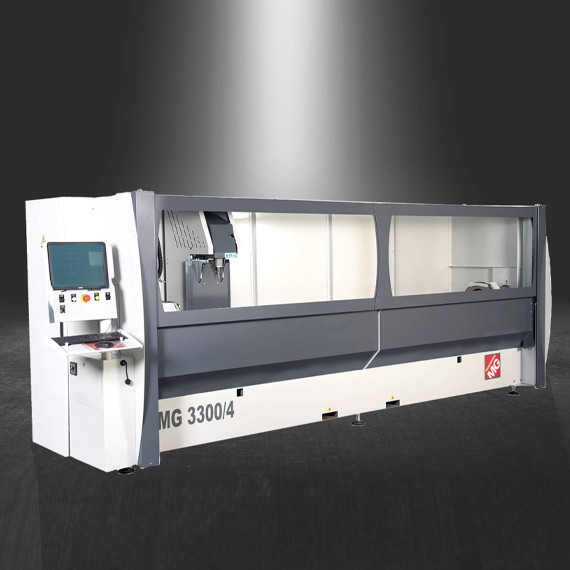

Machining center with moving column and vertical spindle with 4 axis controlled by CNC including rotation of the clamp base which allows any angle ranging from -90 ° to + 90 ° in automatic working cycle.
- Motor HITECO of 5,5KW standard

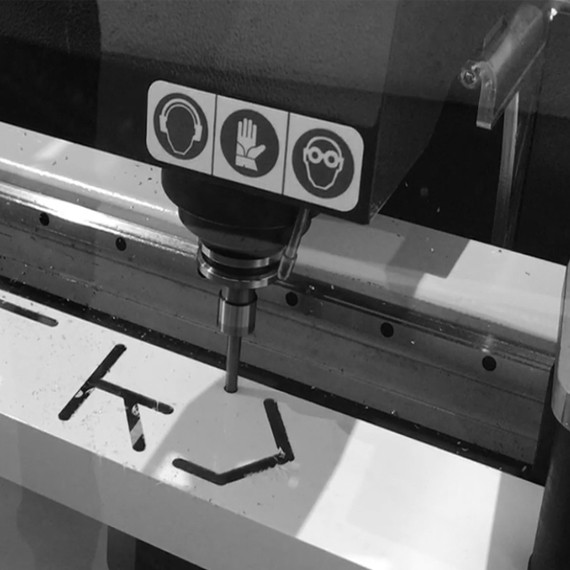

- Quick change hand tool cone ISO30 pneumatically controlled;
- Automatic tool change with station for 4 tools (optionally 8 tools)
- 4 pneumatic standard vices with manual positioning ( -Automatic positioning and more vices as option)
- Possibility to work aluminum, PVC, steel up to 4 mm and -stainless steel up to 3 mm with a specific accessory.
Characteristics:
- Axis movement and clamps rails with recirculating ballscrew and servodrive
- Motion rotated clamp base by rail and wheels
- Numerically controlled axes with 4 brushless motors
- Transmission axis with tilted teeth rack and pinion
- Start cycle with two-handed safety device
- 4 horizontal pneumatic clamps with low pressure device
- Mist lubrification (emulsified oil)
- Tool magazine cones ISO30
- Vice jaws PVC adjustable using keys
- Spindle motor driven by inverter
- Swiveling console
- USB 2.0 port on the control panel and ethernet RJ45 socket
- Preinstalled barcode reader connection
- NC - Industrial PC with Intel microprocessor
- LCD display - TFT (800 x 600) color 10.4 "- touch screen
- Operating system Windows XP Embedded RT
- Software- 3D dimensional
- Indication vice positioning software with reference line of metric
TECHNICAL DATA:
- Power supply (treephase + neutral) 380/400 v 50/60hZ
- Spindle drive phase 5,5kW
- Spindle speed adjustable 2000-20000 RPM
- Axis stroke X-Y-Z 3300 - 250 - 200 mm
- Speed positioning axis X- Y-Z 65 - 25 -25 m/min
- Tilt axis adjustable clamp base -90º ... +90º
- Time rotation axis from 0 ... 90 ° 2 seconds
- Tolerance positioning axes +/- 0,1mm
- Capacity vice (bxh) 16x120 mm
- Diameter cutter 10mm
- Maximum diameter blade 140mm
- Weight 1850 Kg
- Model : MG-3300 /4
- Name : MG-3300 /4
- Category : MACHINING CENTERS
- Options :
none
- Package :
none
