Products Details

DUO-450

DUO-450 -Double Head Cutting Machine for Aluminum / PVC cutting

   ● Includes TCT cutting blade with 450 mm diameter

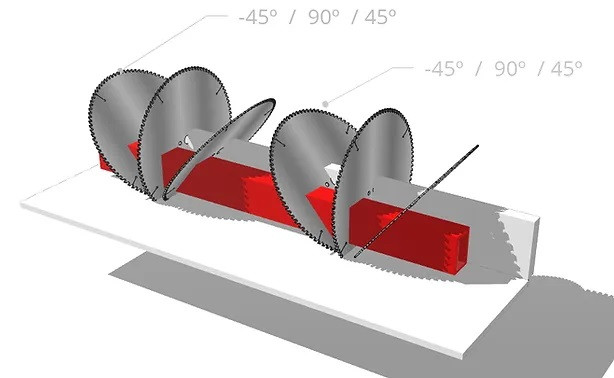

   ● It has a cutting angle capacity of -45º / 90º / + 45º
   ● It has one programmable axis
   ● It can program maximum cutting length of 9500 mm and a Minimum of 10mm
   ● 2x pneumatic horizontal pressers with low-pressure control in cutting area
   ● In manual mode you have two-hand control to activate disk upload
   ● It has got Double pressure safety system
   ● Cutting feed is adjustable
   ● It has got a blad speed of 2900 rpm
   ● 2,2Kw Head motor
   ● 0.37Kw Positioning motor
   ● It has got Pneumatic positioning brake and with Pneumatic lubrication                    system by sprayer
   ● Pneumatic cylinder with Automatic screen

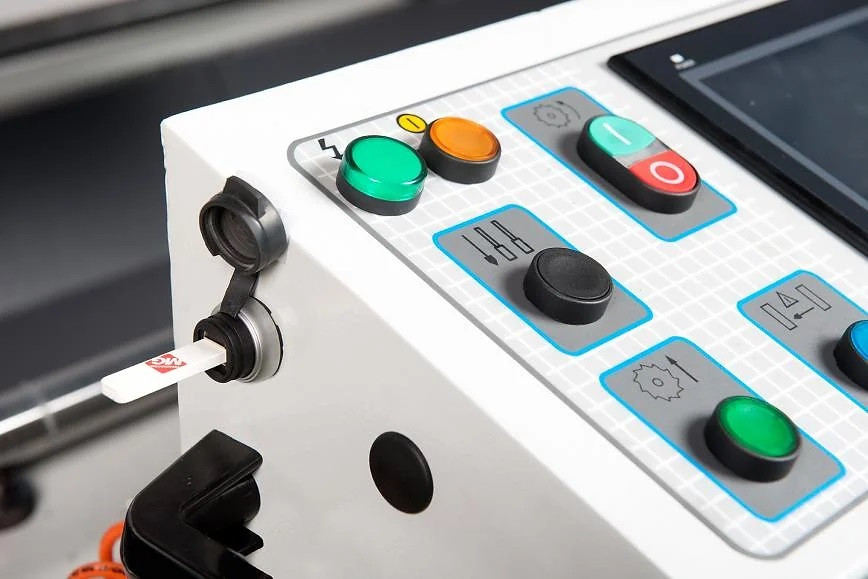

   ● To download cutting list you have got USB port
   ● security screen of Polycarbonate

WORKING MODES:
    ● It has got MANUAL cut setting
    ● SEMIAUTOMATIC cutting option
    ● AUTOMATIC cutting mode
    ● STEP BY STEP cutting mode

OPTIONS:
    ● It has Vertical type pneumatic crushers option
    ● Option of LUBETOOLS Spray
    ● Automatic connection with vacuum cleaner
    ● Option of Ethernet connection combined with PC MG software
    ● Caliber option

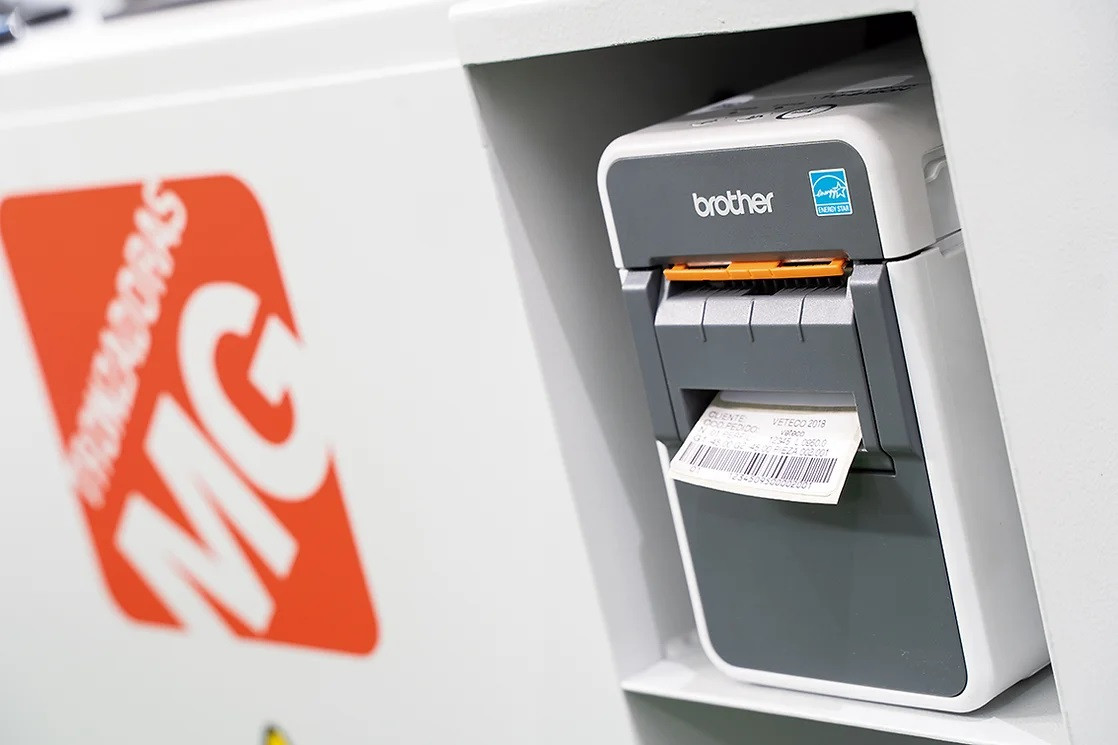

    ● Option with Tag printer

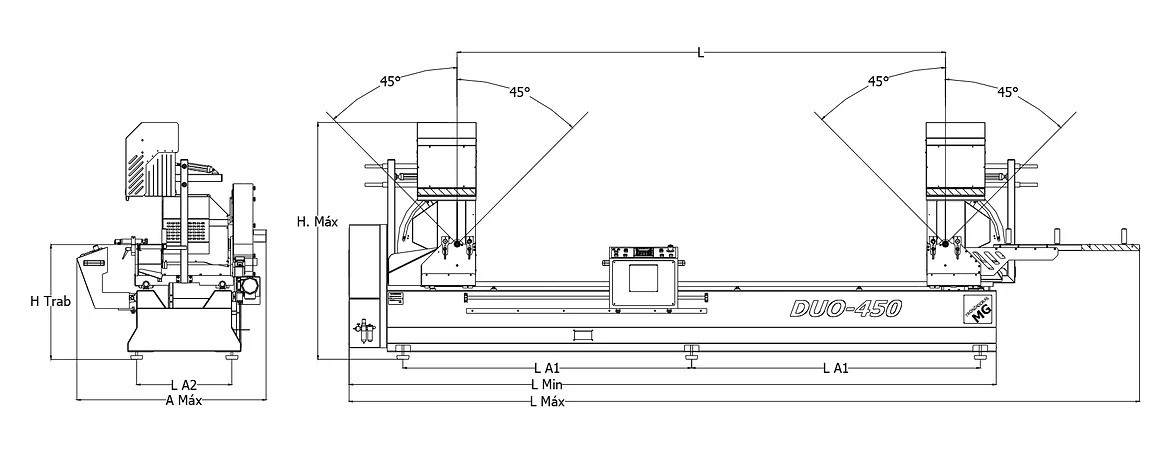

DIMENSIONS:
   ● 5400 X 1600 X 1620 with 1400 Kg weight
