Products Details

DUO-550

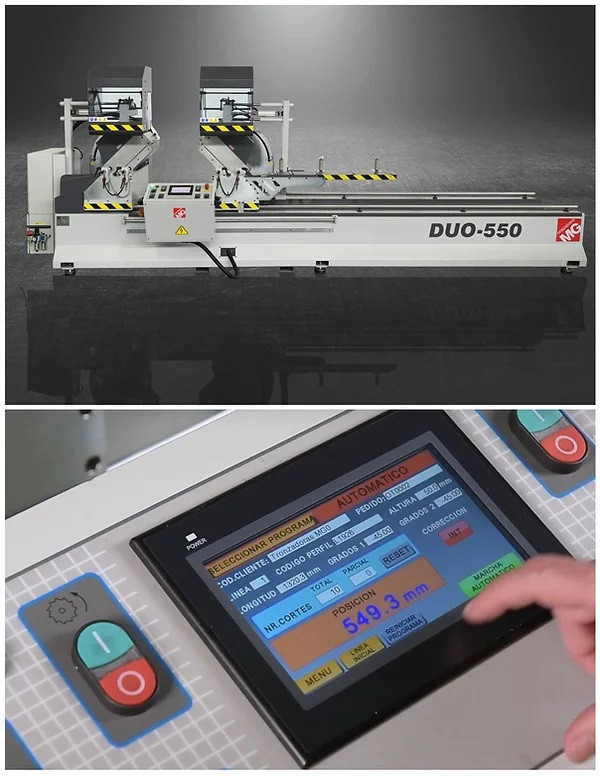

DUO-550-Double Head Cutting Machine for Aluminum / PVC Cutting

• TCT cutting blade with 550 mm diam included

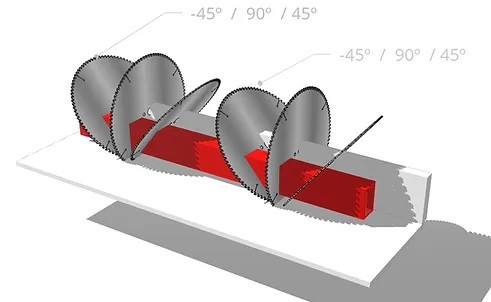

• The capacity of Cutting angle is 45º / 90º / + 45º
• It has only 1 programmable axis
• It has Maximum programmable cutting length of  9500 mm and minimum of 10mm
• It has 2x pneumatic horizontal pressers in cutting area which has a low pressure control
• To activate disk upload in manual mode it has two-hand control
• It has a Double pressure safety system
• Cutting feed is Adjustable
• Blade speed of 2900 rpm
• Head motor  with power 2,2Kw
• Positioning motor  with power 0.37Kw
• It has Pneumatic positioning brake
• Sprayer Pneumatic lubrication system
• Automatic screen controlled by pneumatic cylinder

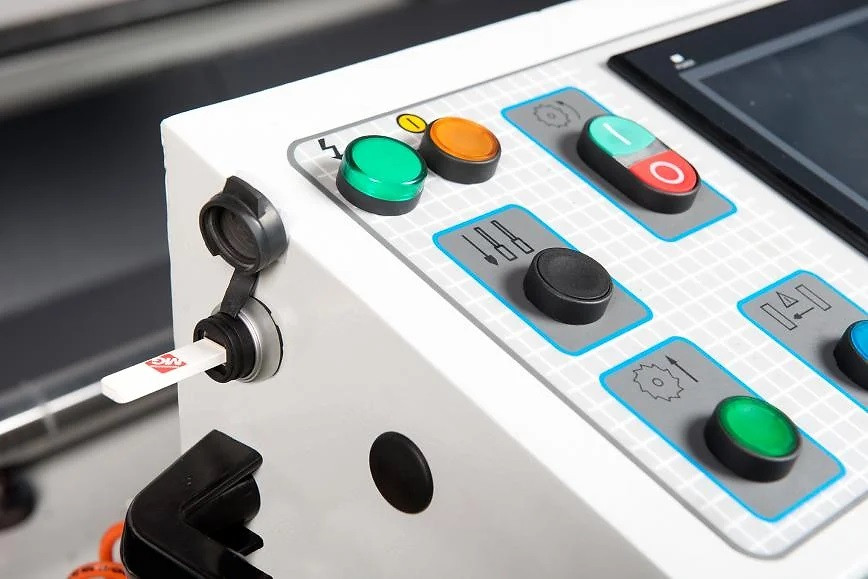

• USB port to download cutting list through USB
• It has Polycarbonate security screen
• It comes with Integrated roller path

WORKING MODES:

• Includes MANUAL cut settings
• It has SEMIAUTOMATIC cut
• And AUTOMATIC cut too
• Another method is Cut STEP BY STEP

OPTIONS:

• Option with Vertical pneumatic crushers
• LUBETOOLS Sprayer option
• Automatic connection with vacuum cleaner
• It has Ethernet connection and PC MG software
• Option with Caliber
• Option to Tag printer
• A ​NEW Option
• 5 meters Machine version

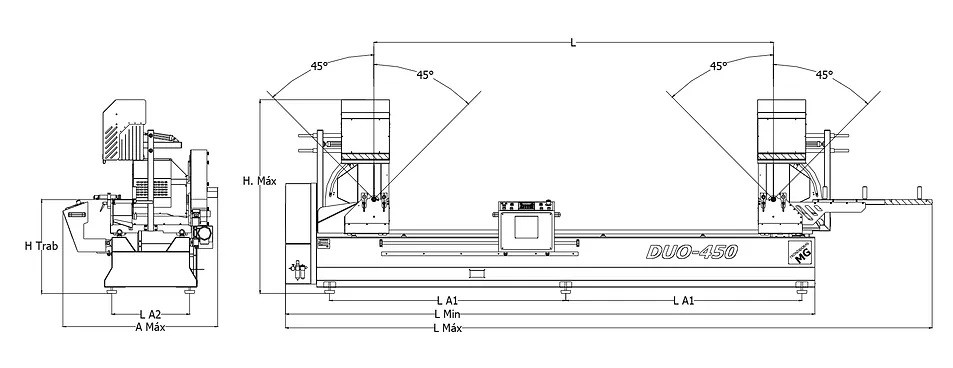

DIMENSIONS:

• 5400 X 1600 X 1620 with 1400 Kg weight
