TLG-352-A Aluminium / PVC Cutting Machine
TLG-352-A Aluminium / PVC Cutting Machine

TLG-352-A

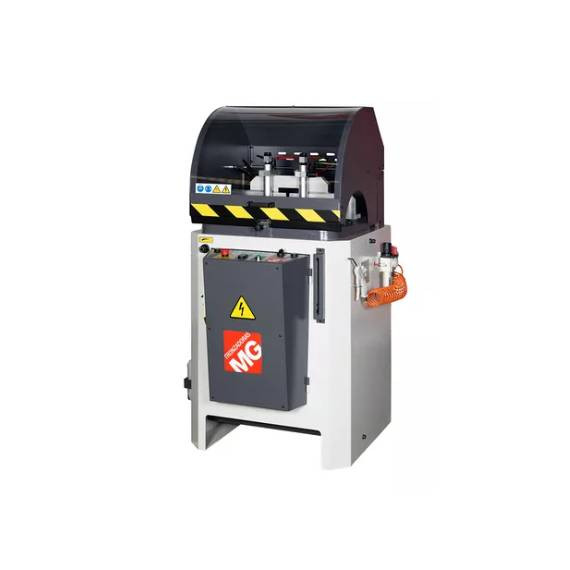

TLG-352-A Aluminium / PVC Cutting Machine

  • It has a Ø350 mm diameter TCT blade saw

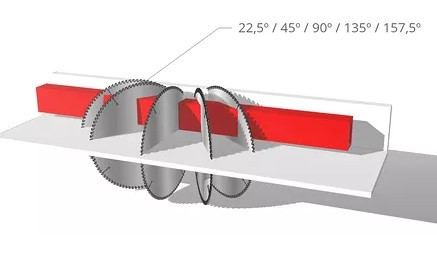

  • Miter turning table is included which can turn from -25º to +155º(-65º to + 65º)
  • It has got a 2HP motor
  • 2x Pneumatic vertical clamps are included with the machine
  • We can include 2x pneumatic horizontal clamps which are optional
  • The machine got bimanual control that can activate the blade raise
  • For clamping cylinders, it has got twin pressure (low-HI) system
  • To increase cutting range it has got an adjustable back fence
  • It is characterized by adjustable cutting speed
  • It has got Pneumatic lubrification system ( venturi )
  • It is coming with a polycarbonate shield

​​OPTIONS:

  • The linear encoder will display the digital angle
  • Option of Mist Lubrification LUBETOOLS with pump included
  • Option with Automatic OPEN/CLOSE hood
  • Laser line option
  • Option to connect the vacuum cleaner to the machine
  • Option of LED illumination
  • Another option is with a Speed (RPM) inverter

DIMENSIONS​​
870 X 710 X 1435 with 80 Kg weight

PACKAGING
Wooden crate packing

  • Model : TLG-352-A
  • Name : TLG-352-A Aluminium / PVC Cutting Machine
  • Category : SINGLE HEAD CUTTING MACHINE
  • Options :

    none

  • Package :

    none
