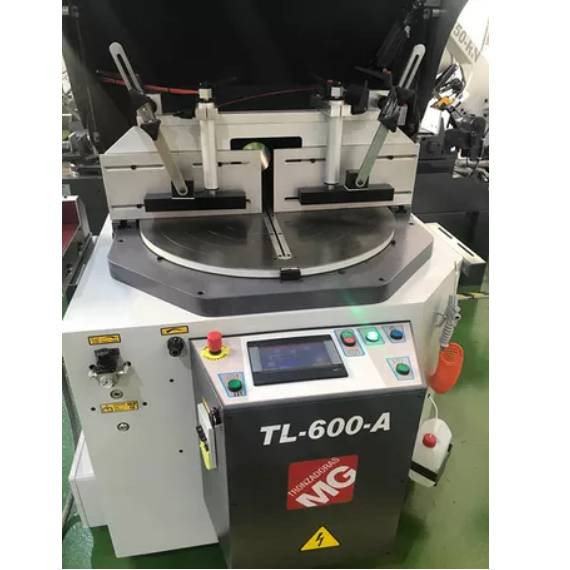

TL-600-AAG CNC
TL-600-AAG CNC Fully Automatic Feeding And Miter Cutting Saw -45º/90º/45º
- It has got a TCT blade saw with a Ø 600 mm diameter

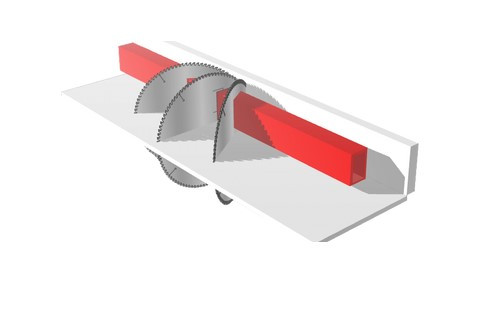

- They can Cut at -45º/90º/45º angles
- It has got a powerful 4 HP Motor (3Kw)
- It is 3,4,6 meter SERVO feeder CNC controlled (other lengths are also optional)
- It has got a SERVO DRIVEN turning blade

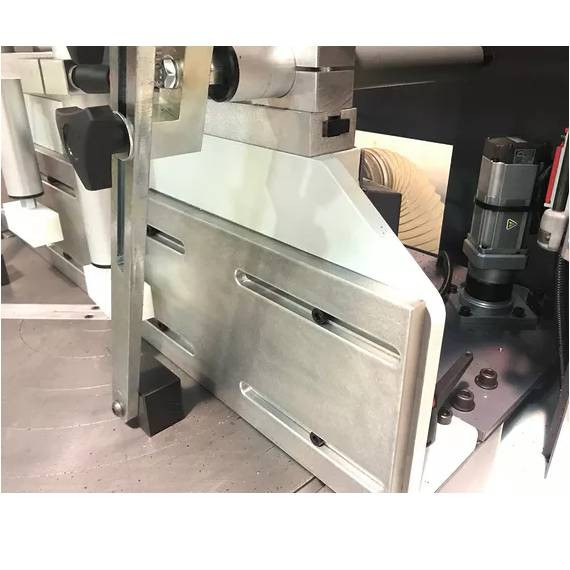

- It has both 2x pneumatic vertical clamping cylinders & 2x pneumatic horizontal
- clamping cylinders.
- Clamping security offered by twin pressure LOW/HIGH system
- Feeding speed can be adjusted.
- venturi device offers Pneumatic lubrification
- It has got an automatic open/close hood
- Feeding, cutting, and angle turning are automatic.
- It is protected by Polycarbonate shield
OPTIONS:
- Option with LUBETOOLS mist lubrification
- Start/Stop of vacuum cleaner can be done automatically
- Option with Blade speed inverter
- Option with the surface protected by PERTINAX layer
- Option with USB connection
- Label printer option
- Option with Barcode reader
PACKAGING
Packed in a Wooden crate
- Model : TL-600-AAG CNC
- Name : TL-600-AAG CNC Fully Automatic Feeding And Miter Cutting Saw -45º/90º/45º
- Category : AUTOMATIC MITER CUTTING
- Options :
none
- Package :
none
