GAA-350-90 CNC Aluminium / PVC automatic cutting saw
GAA-350-90 CNC Aluminium / PVC automatic cutting saw

GAA-350-90+ TR12

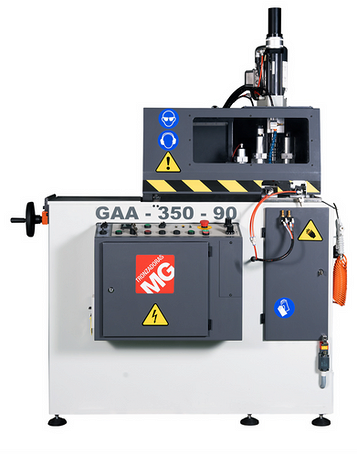

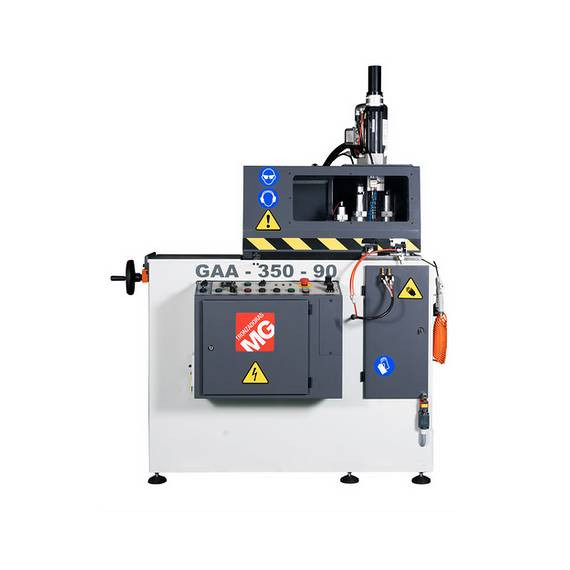

GAA-350-90 CNC Aluminium / PVC automatic cutting saw

  • Ø 350 mm  TCT blade included in the machine

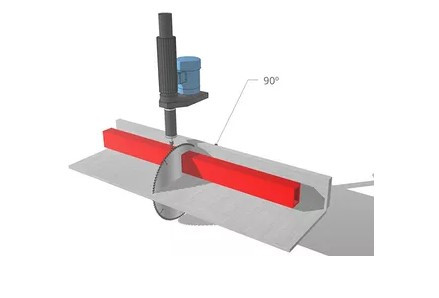

  • Cutting at 90º
  • 2,5 HP Motor
  • 300 mm balscrew servomotor feeder
  • Unlimited strokes
  • 2x pneumatic vertical  clamping cylinders
  • 2x pneumatic horizontal clamping cylinders
  • Twin pressure LOW/HIGH system for clamping security
  • Cutting advance adjustable
  • Adjustable feeding speed
  • Pneumatic lubrification by venturi device
  • Automatic OPEN/CLOSE hood
  • LED lightning
  • Lack of material sensor
  • Policarbonate shield

OPTIONS:

  • LUBETOOLS mist lubrification
  • Automatic START/STOP of vacuum cleaner
  • Blade speed inverter
  • PERTINAX layer protection surface
  • USB connection
  • Label printer
  • Barcode reader

PACKAGING & DIMENSIONS:

  • 1400 X 850 X 970 (260 Kg)
  • Wooden crate

  • Model : GAA-350-90+ TR12
  • Name : GAA-350-90 CNC Aluminium / PVC automatic cutting saw
  • Category : AUTOMATIC CUTTING AND DRILLING MACHINE
  • Options :

    none

  • Package :

    none
