RAFRE CR-A

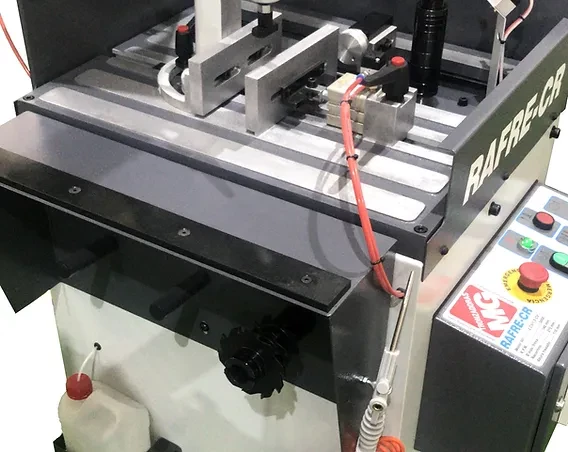

RAFRE CR-A Aluminium / PVC manual corner milling machine
It has both Vertical and horizontal tightening clamps included with pneumatic cylinders. Whereas the vertical one can be adjusted in longitude and height. Milling cutter course by pneumatic cylinders and adjustable in advance.

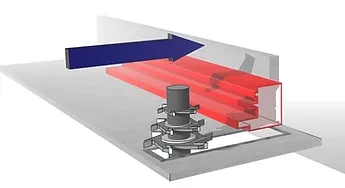

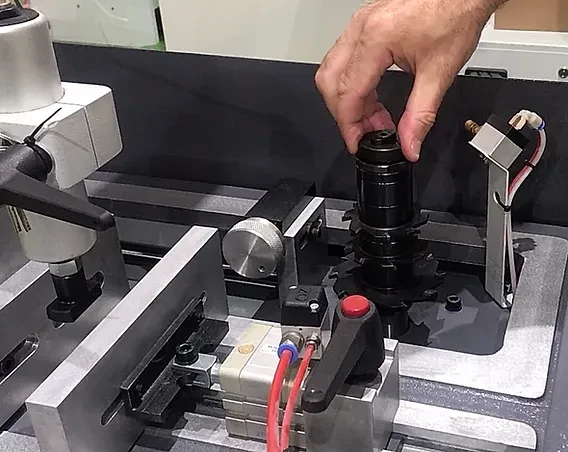

An adjustable nozzle is used to spray for refrigeration. In this machine for angle millings, the clamp turns 45º to the right and to the left. Chance for the quick change of the milling cutters set. The stop is adjustable for different measures.
Height-adjusting spindle is used for the displacement of the engine.
- It has a Blade saw with 300 mm diameter
- It has got a 2,75 HP Motor
- Blade speed of 3000 rpm
- Motor shaft axis with 27 mm diameter
- interior milling blade of 32 mm
- Maximum drilling tool with 140 mm diameter
- course movement of 275 mm
- It has 1x manual clamping
- To increase milling capacity, it has Adjustable back fence
- I has got Automatic Lubrification
DIMENSIONS:
- 630 X 515 with 150 Kg weight
PACKAGING
Packed in a Wooden crate
- Model : RAFRE CR-A
- Name : RAFRE CR-A Aluminium / PVC manual corner milling machine
- Category : CORNER MILLING MACHINE
- Options : --
- Package : --
