GAA-350-90 CNC + TR12

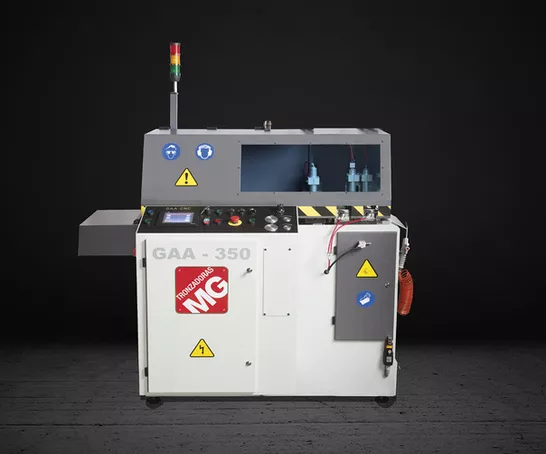

GAA-350-90 CNCAluminium / PVC automatic cutting saw
- It has got a TCT blade saw with a Ø 350 mm diameter

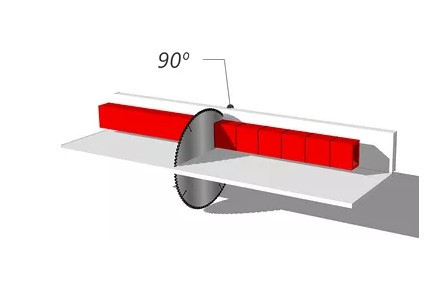

- They can Cut at 90º Angel
- It has a 2,5 HP Motor
- A 700 mm ball screw servo motor feeder is included
- It is characterized by Unlimited strokes

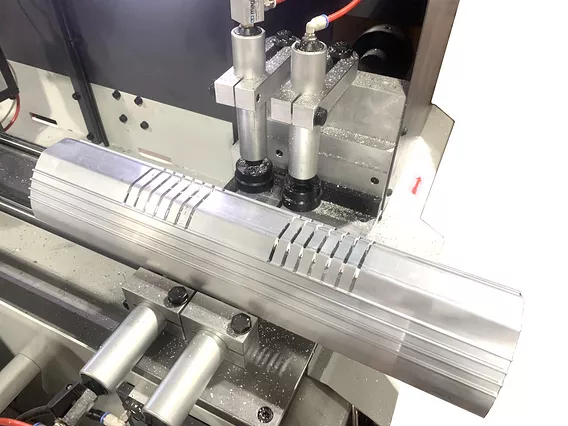

- 2x pneumatic vertical clamping cylinders & 2x pneumatic horizontal clamping cylinders are included
- Provides clamping security by Twin pressure LOW/HIGH system
- Cutting can be adjusted in advance.
- We can adjust the feeding speed
- It has a Pneumatic lubrification system powered by a venturi device.
- It comes with an automatic OPEN/CLOSE hood
- It has got an LED lighting option
- It lacks a material sensor
- It comes with a polycarbonate shield
OPTIONS:
- It has an option of LUBETOOLS mist lubrification
- A vacuum cleaner with Automatic START/STOP
- Another option is the Blade speed inverter
- Option with PERTINAX layer protection surface
- Option to connect the USB
- Option with a Label printer
- Barcode reader option
DIMENSIONS:
1500 X 1400 X 970 with 420 Kg weight
PACKAGING
Packed in a Wooden crate
- Model : GAA-350-90 CNC + TR12
- Name : GAA-350-90 CNCAluminium / PVC automatic cutting saw
- Category : AUTOMATIC CUTTING MACHINE
- Options :
none
- Package :
none
