GAA-500-90
GAA-500-90 Aluminium / PVC automatic cutting saw
- It has a got TCT blade saw with a Ø 500 mm diameter

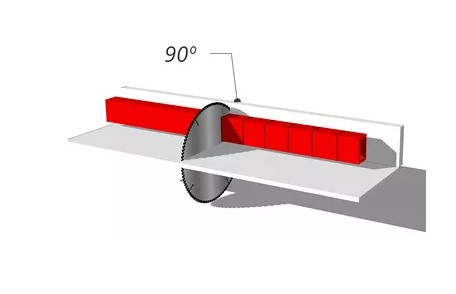

- They can Cut at 90º Angel
- A Powerful 5,3 HP (4kW) Motor
- A 500 mm oleo-pneumatic feeder is included
- It is coming with a Twin stroke (500 + 500 mm)
- 2x pneumatic vertical clamping cylinders and 2x pneumatic horizontal clamping
- cylinders are included
- Provides clamping security by Twin pressure LOW/HIGH system
- Cutting can be adjusted in advance.
- We can adjust the feeding speed
- It has a Pneumatic lubrification system powered by a venturi device.
- It comes with an automatic OPEN/CLOSE hood
- It has got an LED lighting option
- It has got a lacks material sensor
- It comes with a polycarbonate shield
OPTIONS:
- The first option is Motor 7,3 HP (5,5kW)
- The Second option is Motor 10 HP (7,5kW)
- Option with 0-9 strokes
- It has an option of LUBETOOLS mist lubrification
- A vacuum cleaner with Automatic START/STOP
- Another option is the Blade speed inverter
- Option with PERTINAX layer protection surface
DIMENSIONS:
1950 X 1050 X 970 with 450 Kg weight
PACKAGING
Packed in a Wooden crate
- Model : GAA-500-90
- Name : GAA-500-90 Aluminium / PVC automatic cutting saw
- Category : AUTOMATIC CUTTING MACHINE
