C-500-AH

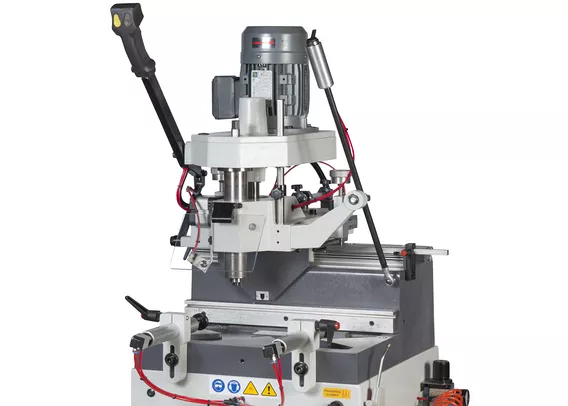

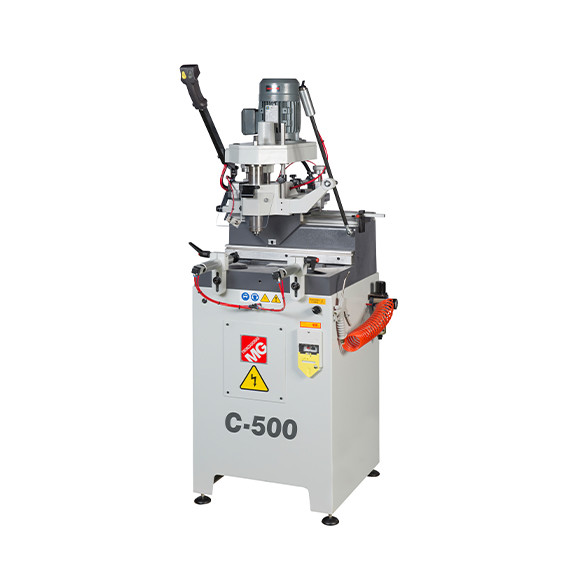

C-500-AH Aluminium / PVC copy router milling machine
Single headstock milling machines (Pantograph). For milling in aluminium and iron shaping with 1,5mm thickness.
characteristics:
- Semiautomatic machine to make lock housings, hinges, cylinders, etc. in aluminium or PVC.
- With electronic variator for iron milling.
- The milling is by means of cutting templates (with two tracers) or of transversal, longitudinal and vertical stops.
- Automatic refrigeration by spraying.
- The headstock has a stopping device to choose the height for the milling.
- With electronic inverter for iron milling.
|
Table dimensions |
500X280 mm |
|
Longitudinal course |
260 mm |
|
Transversal course |
140 mm |
|
Vertical movement |
150 mm |
|
Motor |
1.00 Hp |
|
Cutting speed |
9000 rpm |
|
Milling tool shaft diam. |
8 mm |
SPEED VARIATOR
Milling up to 3 mm Steel
Package:
1004 x 680 x 1930 (150 Kg)
Wooden Crate
